Wharfedale’s famous Diamond speakers have served as the classic entry point to true high-fidelity sound, their exceptional value for money earning numerous ‘product of the year’ awards in the UK and around the world. Now, with the Diamond 11 Series, Wharfedale has once again raised the bar for affordable, high-performance loudspeakers.
Britain has long been recognised as being the home of loudspeaker technology in terms of innovation and quality. Gilbert Briggs’ first loudspeaker was manufactured in 1932 through a passion for music and an ear for detail - in a sleepy little market town of Yorkshire Wharfedale was born. After winning multiple awards, his work is still much admired and respected throughout the hi-fi world today and our speakers are still driven by the same passion for music. Wharfedale’s Diamond series has a long history of achievement. The first Diamond was born in 1982 in the form of a rear ported hi-fi speaker. A combination of a 19mm dome tweeter, 120mm long throw polypropylene bass/mid driver and a simple yet highly effective crossover in a compact hi-fi speaker took the industry by storm. The speaker produced an impeccable stereo image, quickly becoming a best seller and a permanent fixture in the Wharfedale product range. Since then, every Wharfedale Diamond Series has been a best-seller. From 1982 Wharfedale Diamond has meant one thing - impeccable performance at an affordable price. Today we are pleased to bring you the latest of loudspeakers from Wharfedale that aspires to this tradition - Diamond 11.
Advanced Driver Systems
Diamond 11 features massive magnet designs to both raise sensitivity and ensure absolute control of cone movement over lower bass frequencies. In addition the use of a specially shaped top plate with copper cap controls the magnetic flux and ensures low distortion through the critical midrange area. Then there is the suspension which features a lightweight progressive foamed surround, in conjunction with a super-long-throw voice coil motor system, to achieve unparalleled linearity and accuracy in this sector of the market. Nor have we forgotten the high frequency performance. A similar over-size ceramic magnet system is used for the HF unit, again featuring a copper cap for flux control. And, here, the pole piece is vented through to a specially shaped rear chamber. This provides a low resonant frequency ensuring wonderful linearity throughout the operating system and allowing the textile dome to provide lucid midrange performance in addition to precise high frequency detailing.
While the cabinet, to the owner, is often just a piece of furniture, at Wharfedale we have long realised that it is the final piece of the design process that marks a loudspeaker out of the ordinary. For Diamond 11 our engineers have refined the multi-layer sandwich of differing woods to subdue the identifiable characteristics of the cabinet ‘sound’ and so let the drive units speak for themselves. Critical bracing of the cabinet panels and, of course, the curving of the cabinet walls to provide a non-boxy shape, have reduced resonances more than 25dB below the driver outputs. In addition we use a specially developed internal fibre to line the cabinet walls which has been chosen because of its outstanding absorbent qualities across a wide bandwidth.
WFR Vented System
The Diamond 11 utilizes a new Wide Frequency Response (WFR) vented HF design. By utilizing a custom machined vented pole plate exiting into the large sealed rear chamber, the WFR design can extend down to frequencies below 0.5kHz before rolling off. This results in cleaner more detailed vocal presentation and smoother transitions into the MF/LF.
Slot-loaded distributed port
The slot-loaded distributed port is a recent Diamond innovation where the internal port tube opens into a slot formed between the cabinet and the plinth. This not only reduces the turbulence caused by the sudden outrush of high pressure air into the low pressure in the room, suffered by conventional ported systems, but also increases the efficiency of transfer of energy from the bass reflex tuning to the room. For Diamond 11 we have taken this one stage further, profiling both ends of the port with a semi-parabolic exit curve that linearises airflow through the port tube. This has allowed us to increase the volume of air in the slot loaded system and further improve the performance of the low frequency output. The result is an entirely natural and low distortion recreation of the fundamental notes of bass instruments, matching the realistic sound of the midrange and treble characteristics. The low Q nature of this ported system also allows the listener to position Diamond 11 speakers close to a rear wall, helping to make the speakers less obtrusive in a room setting.

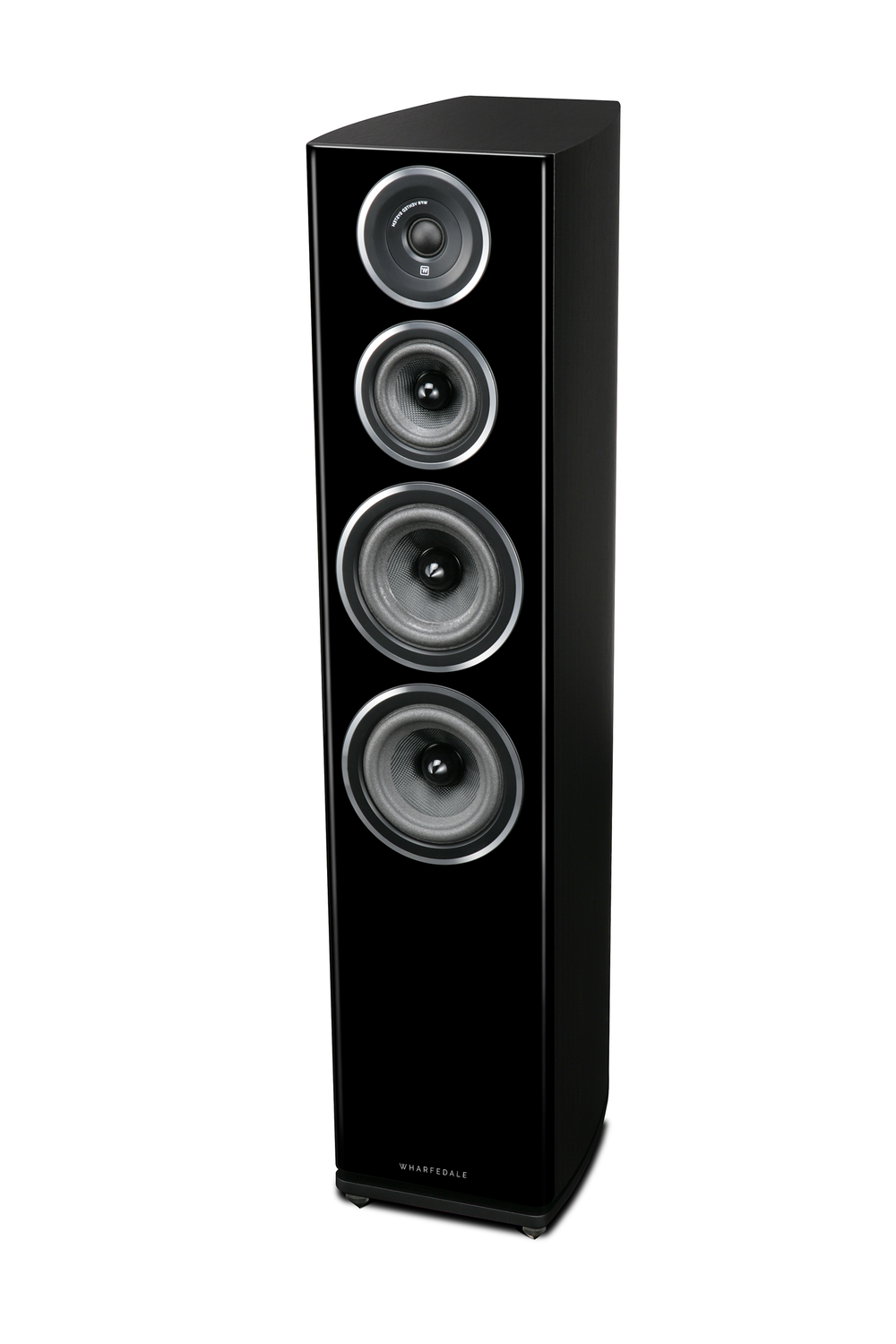

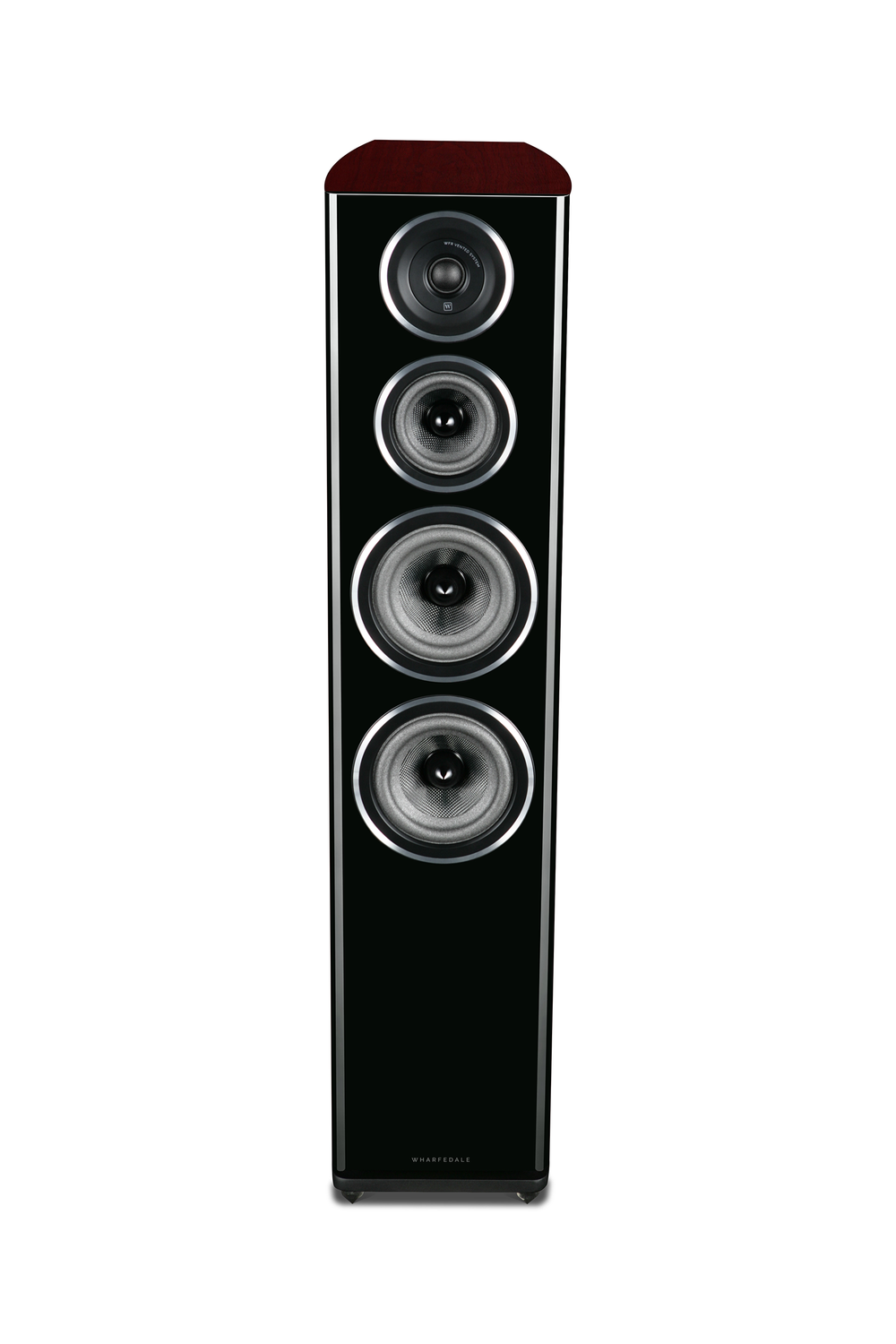

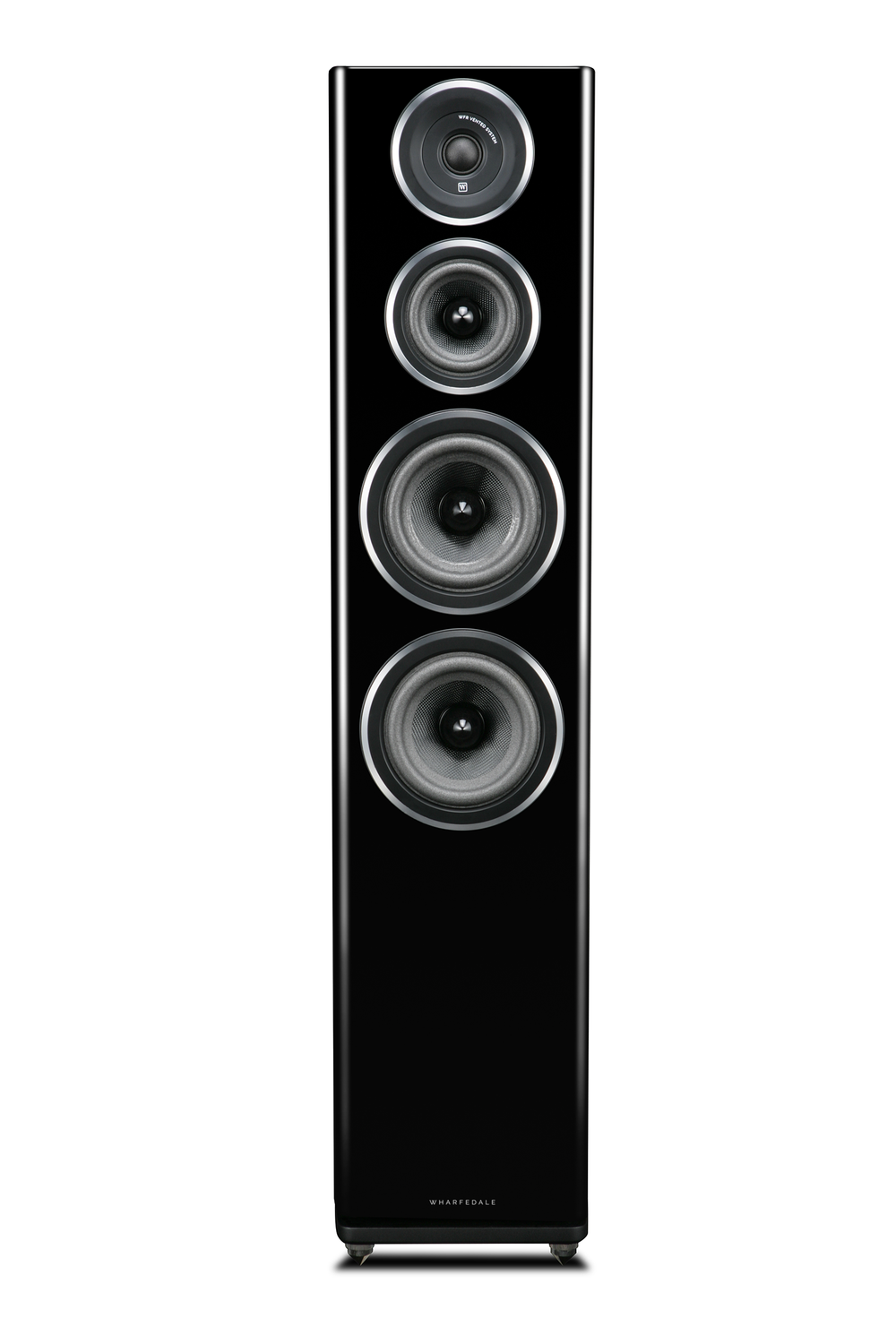

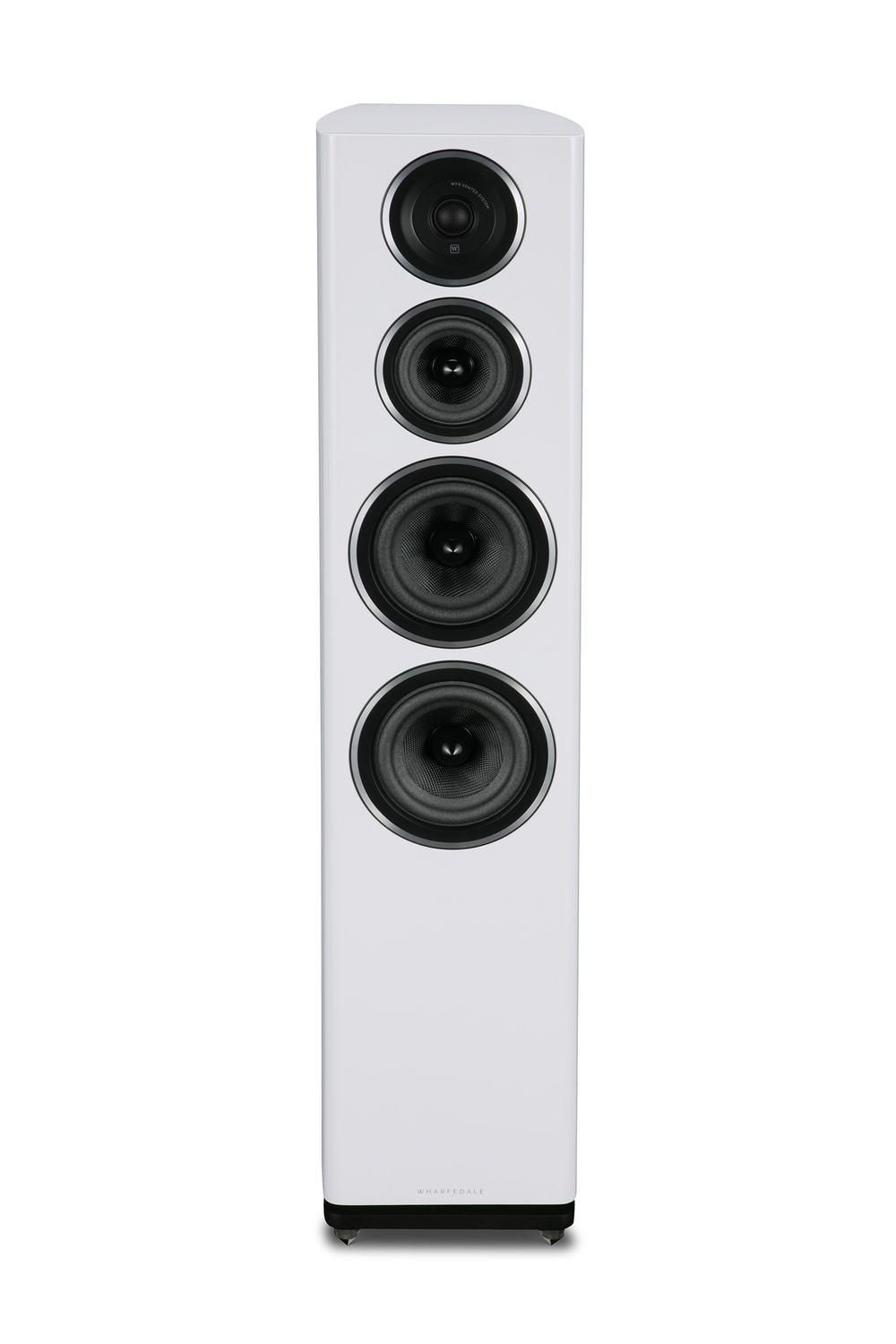

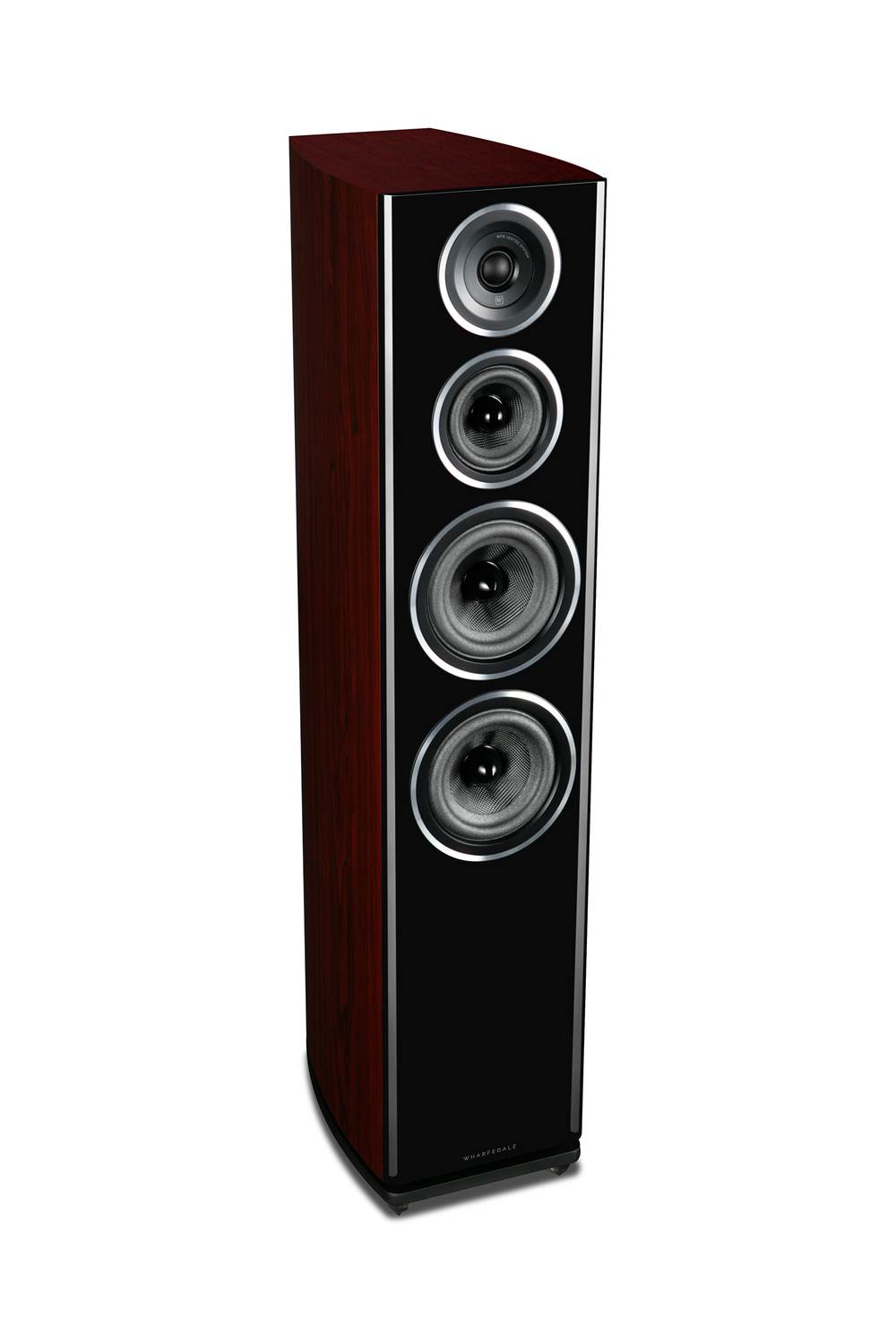

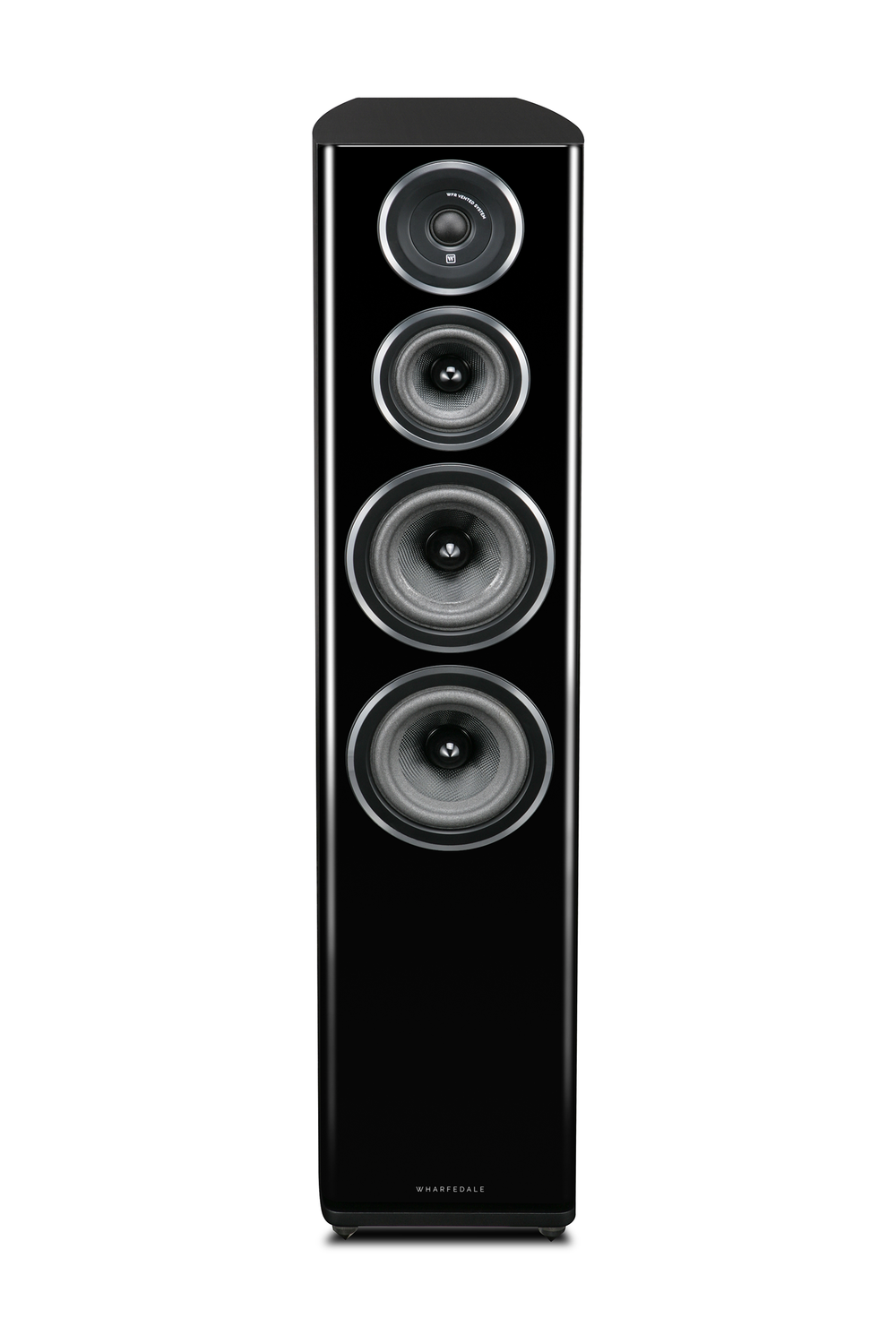

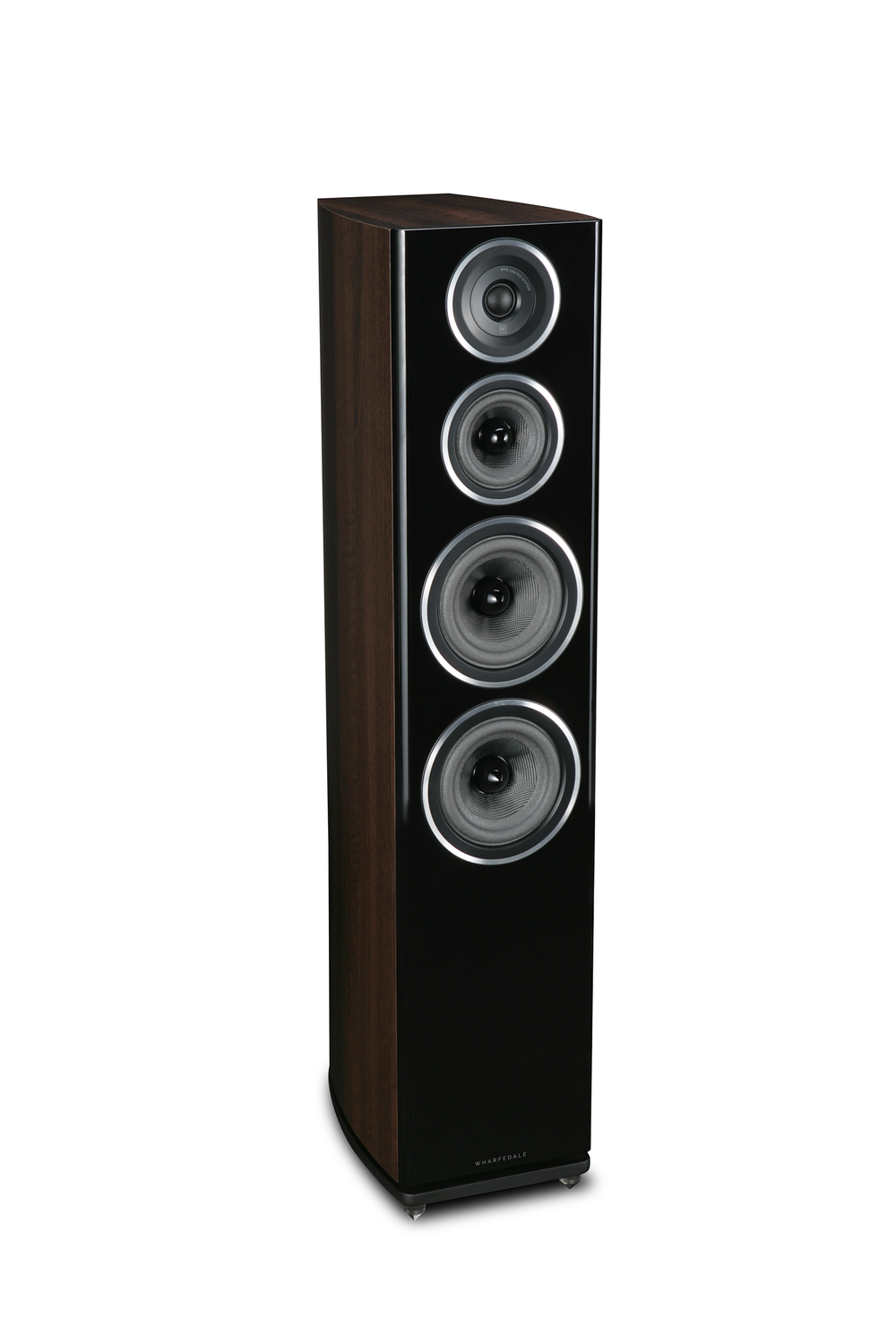

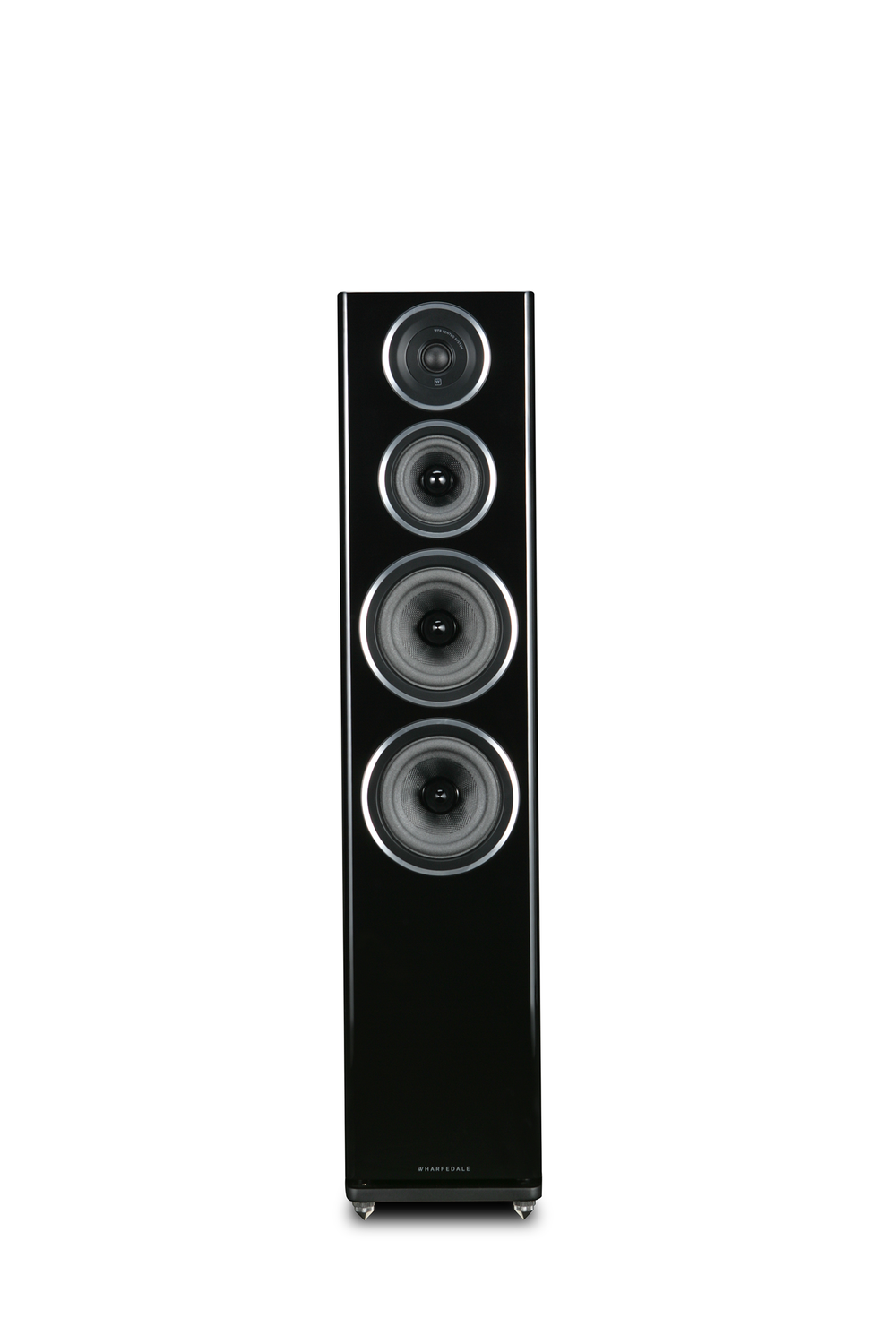

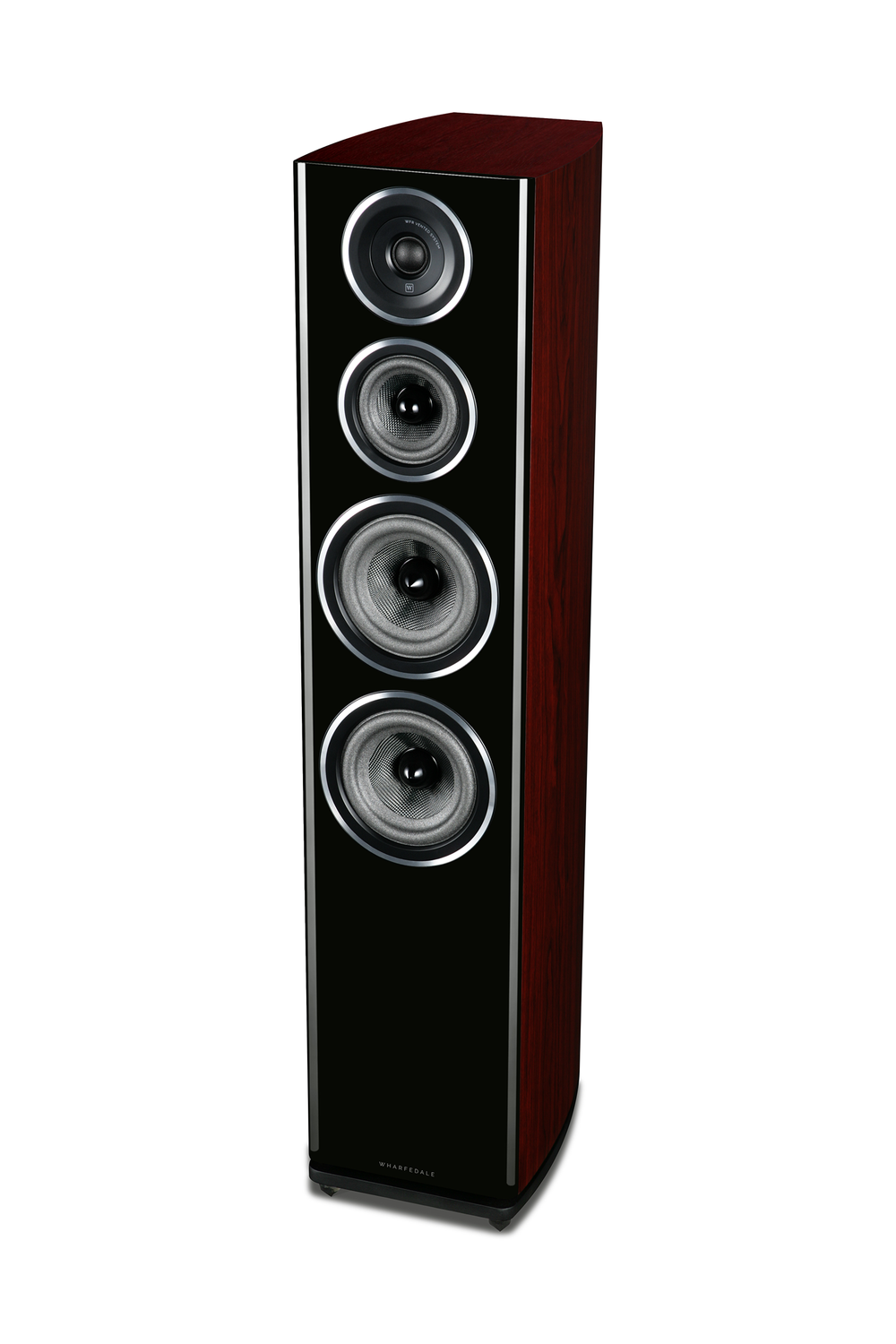

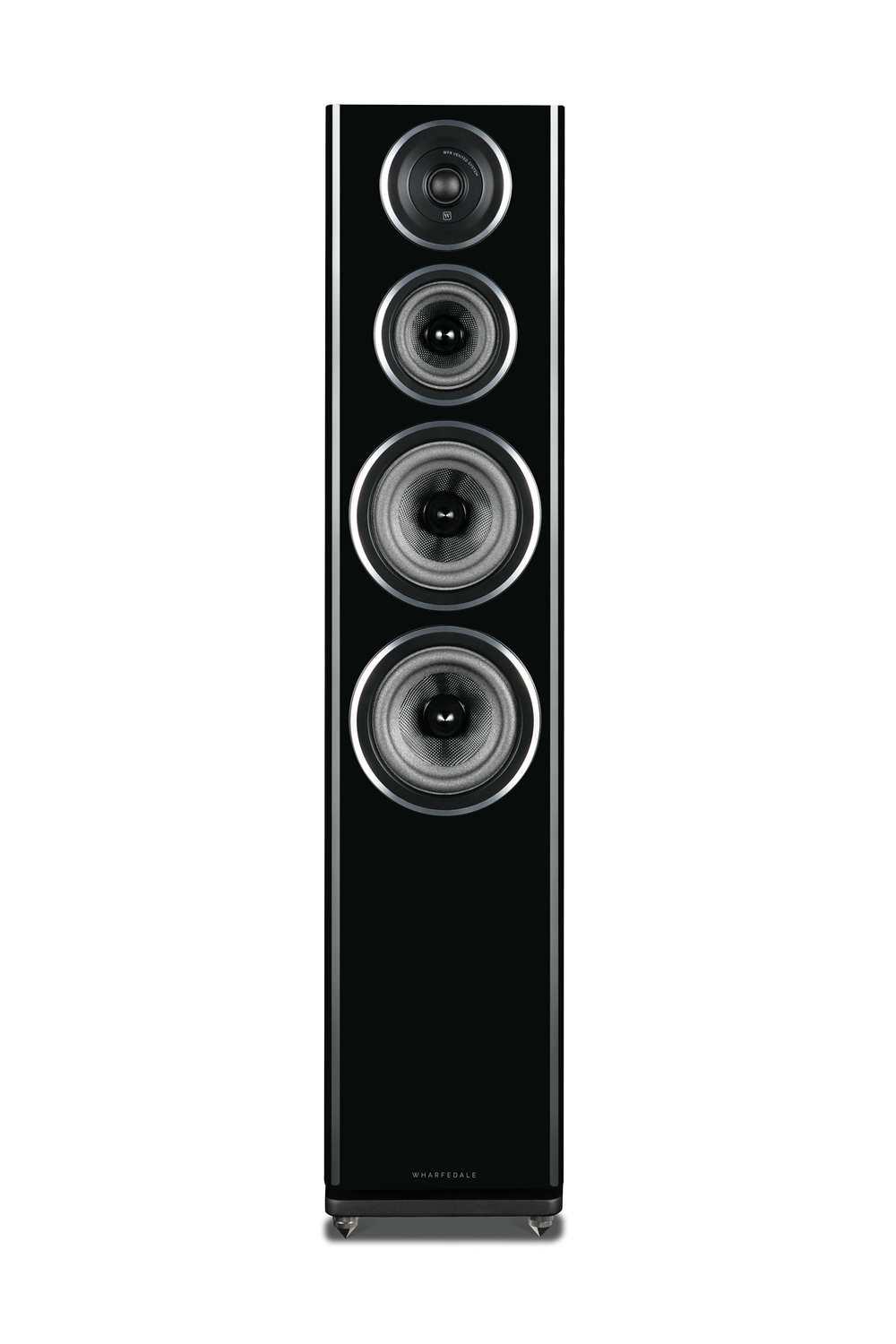

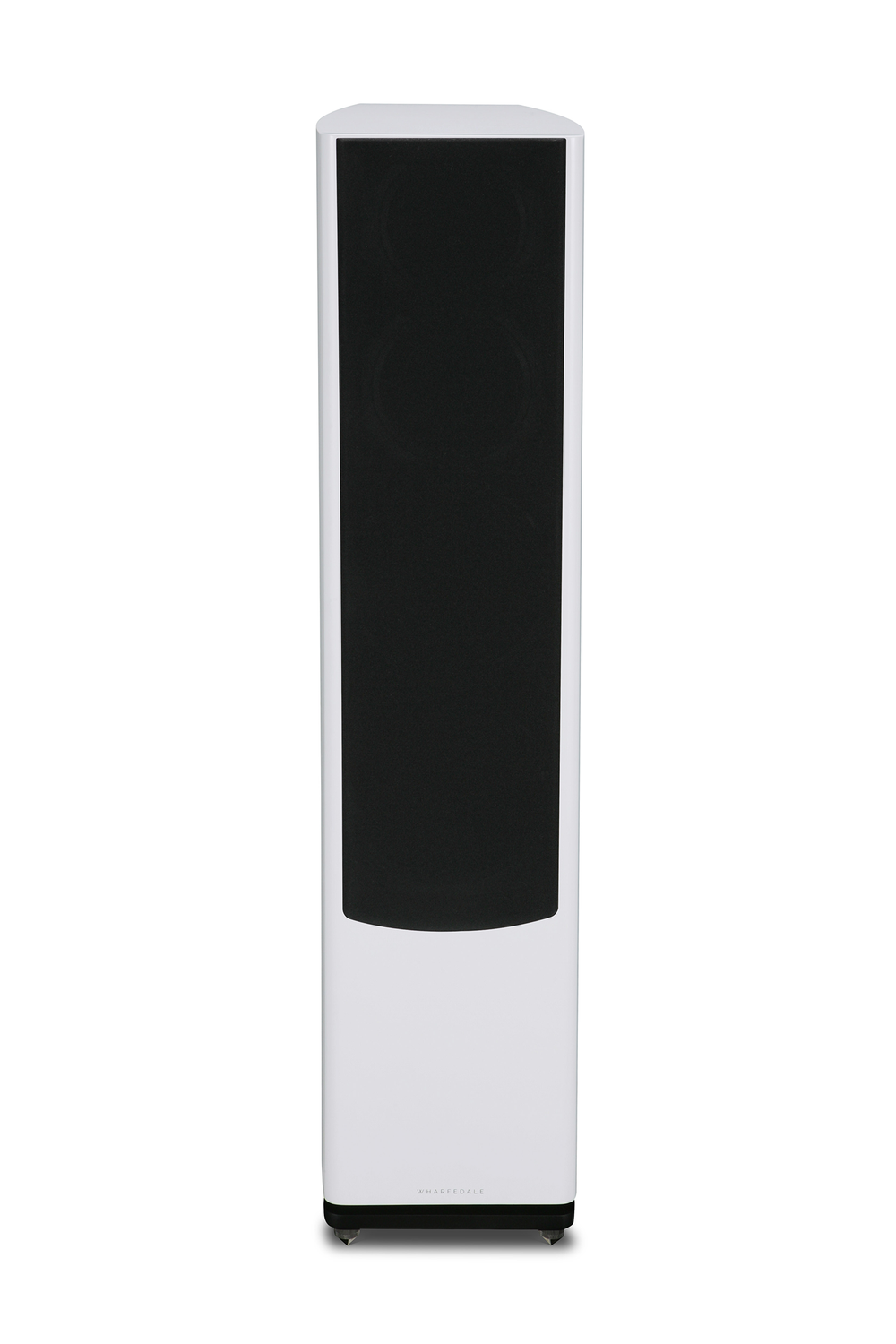

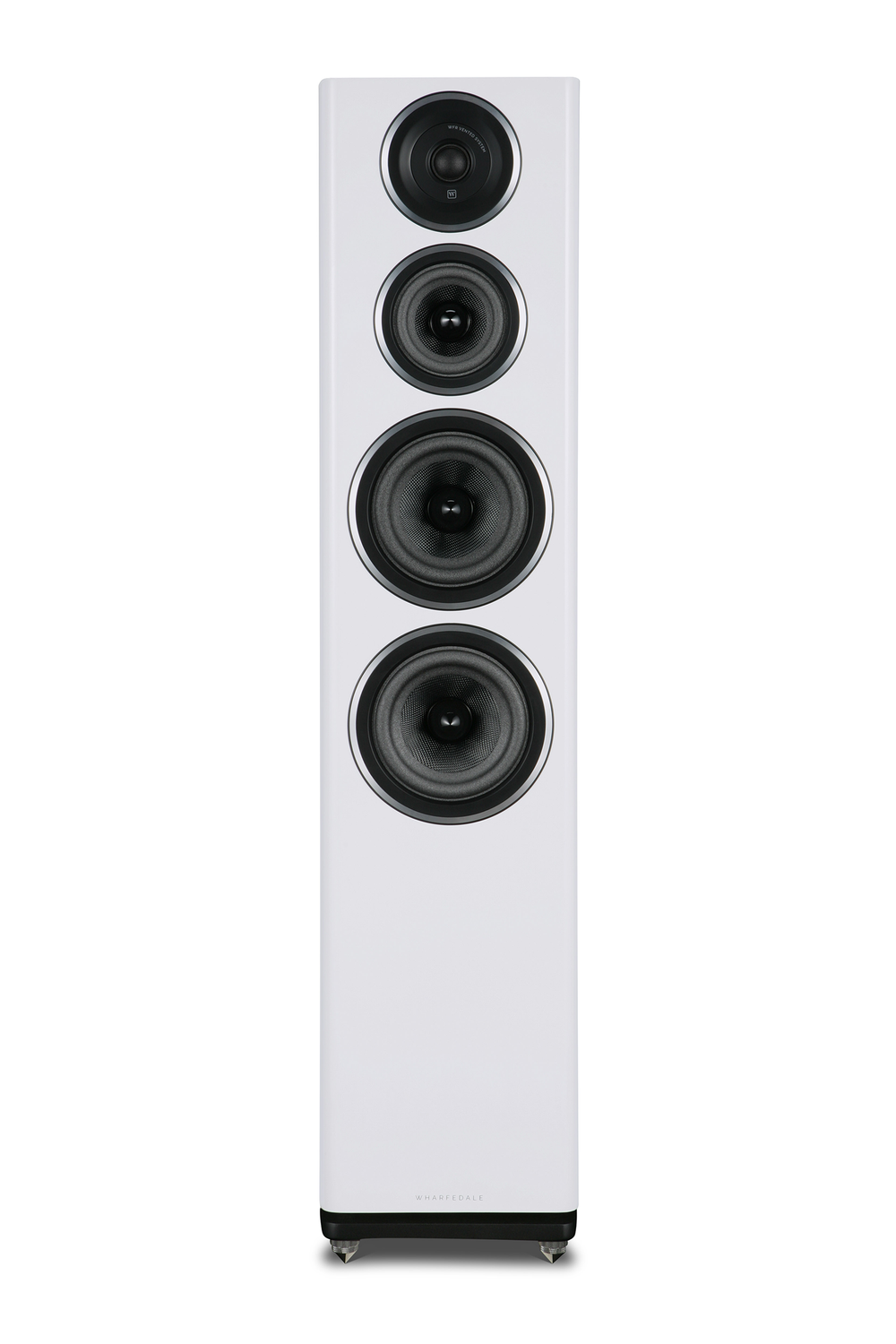

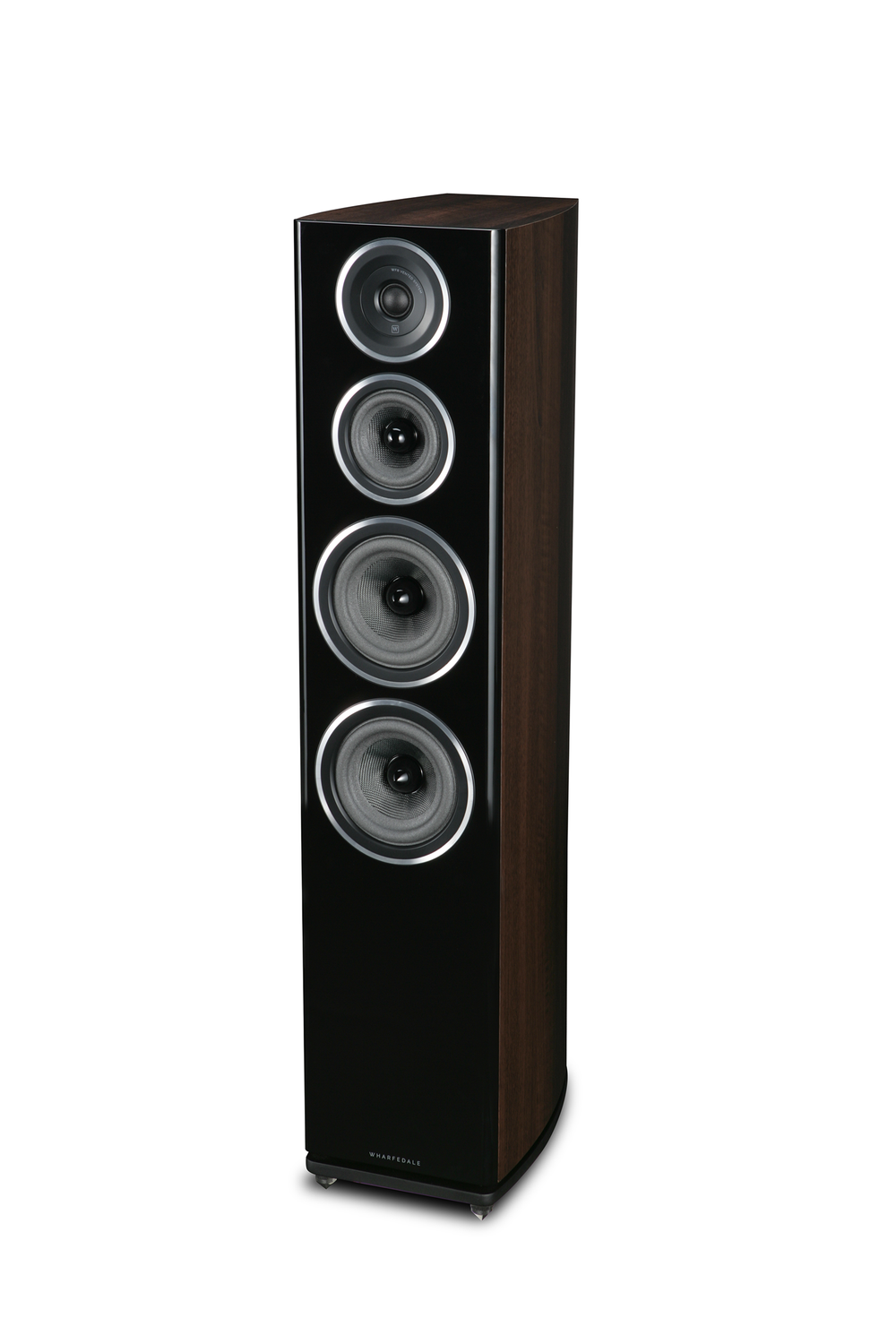

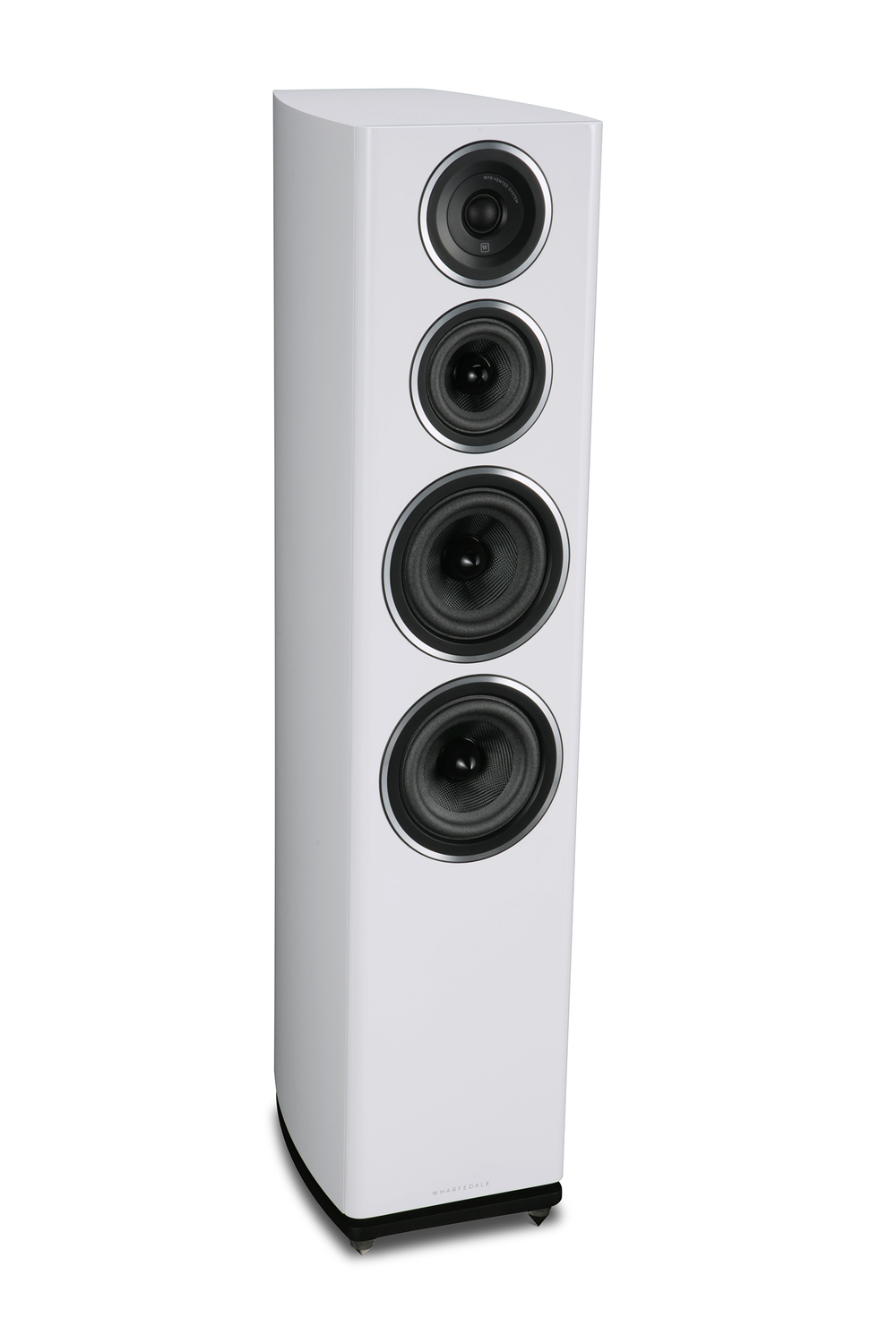

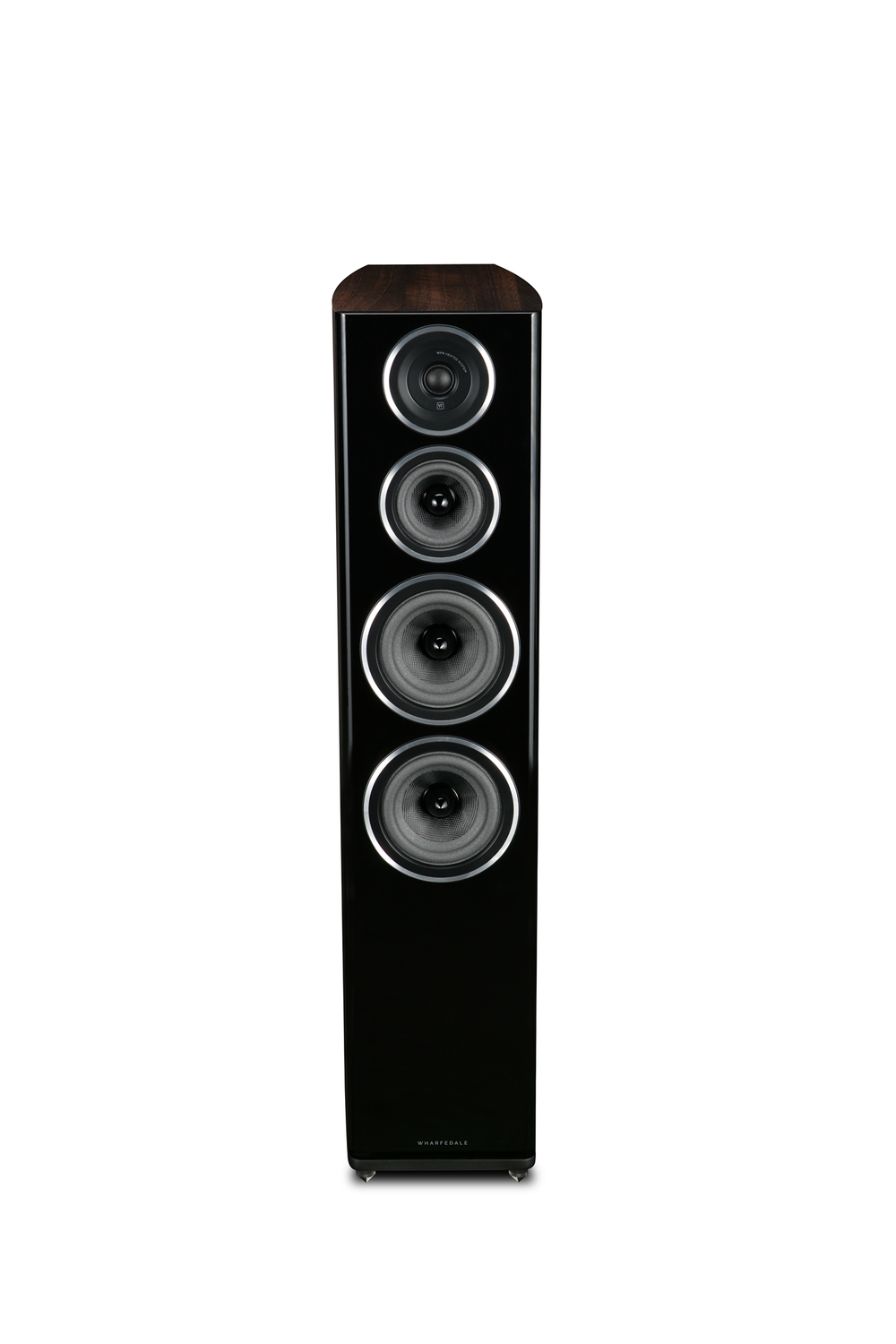

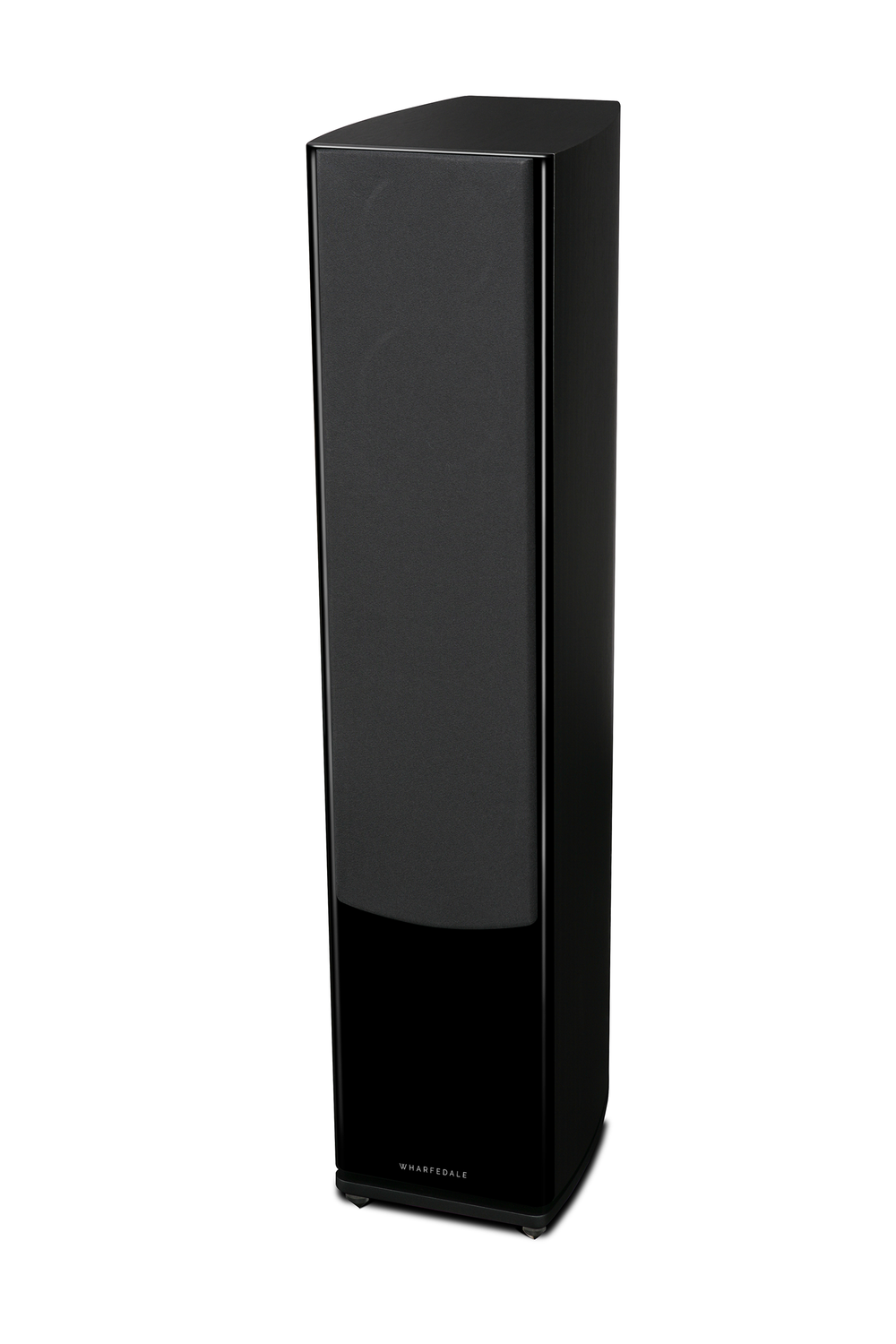

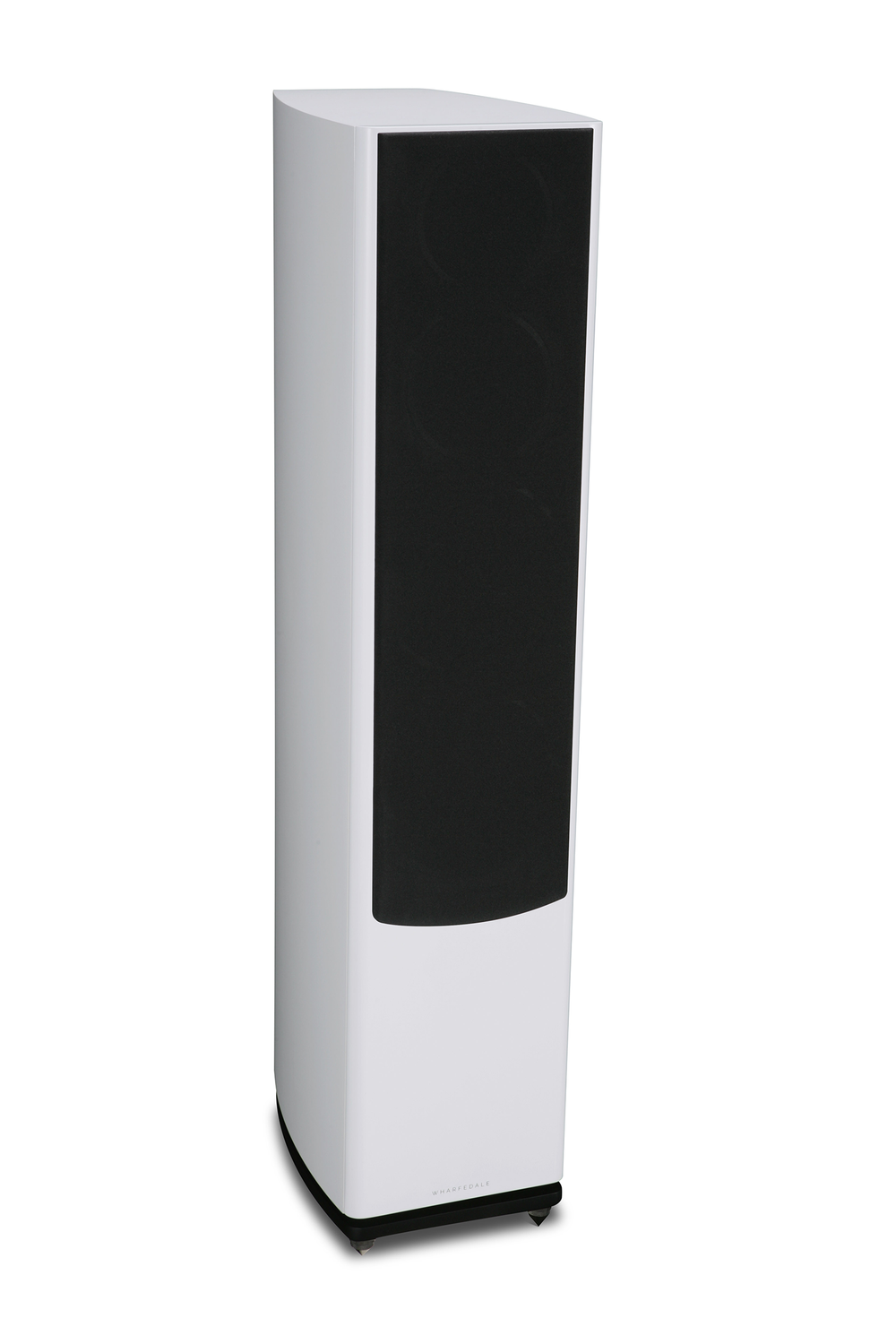

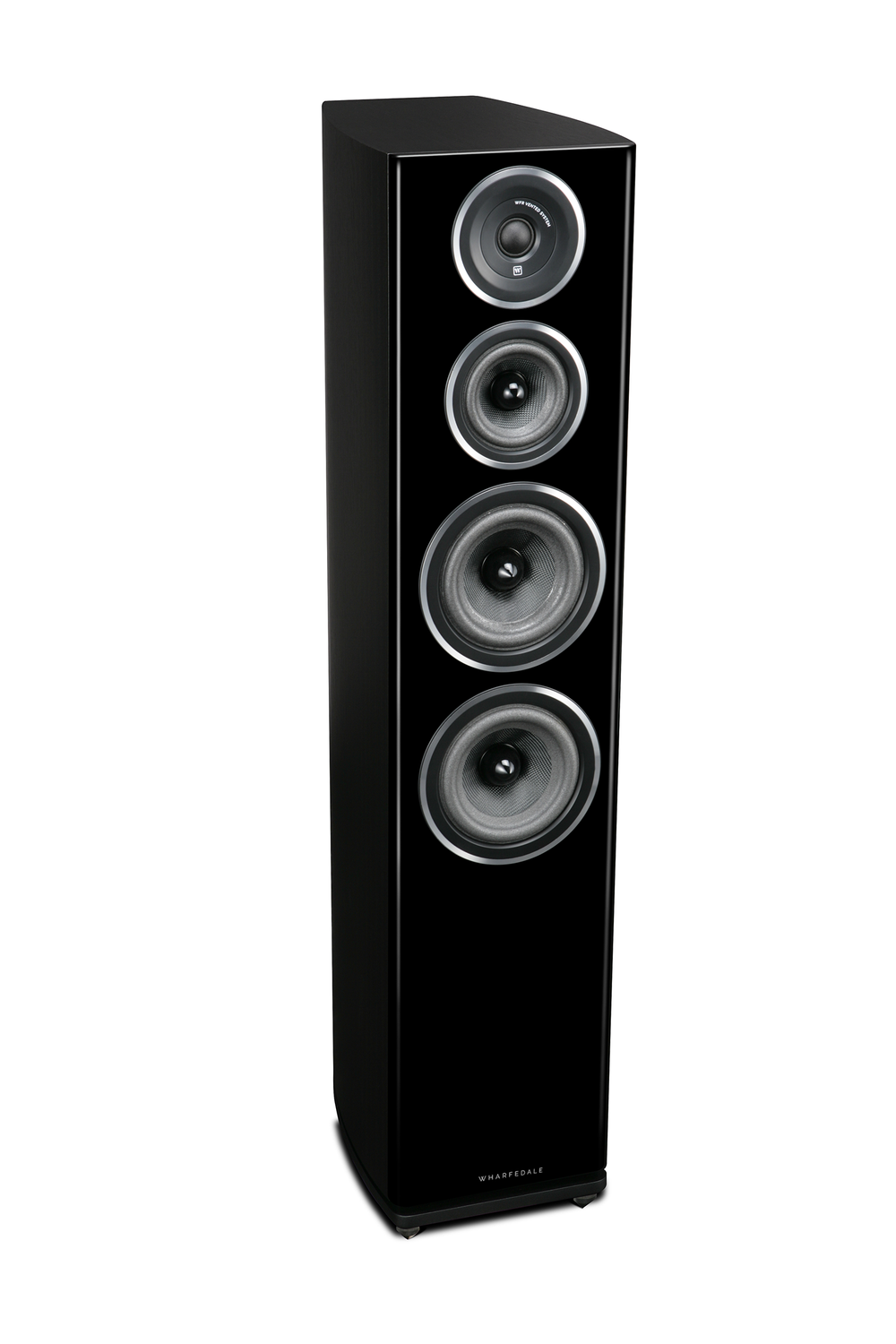

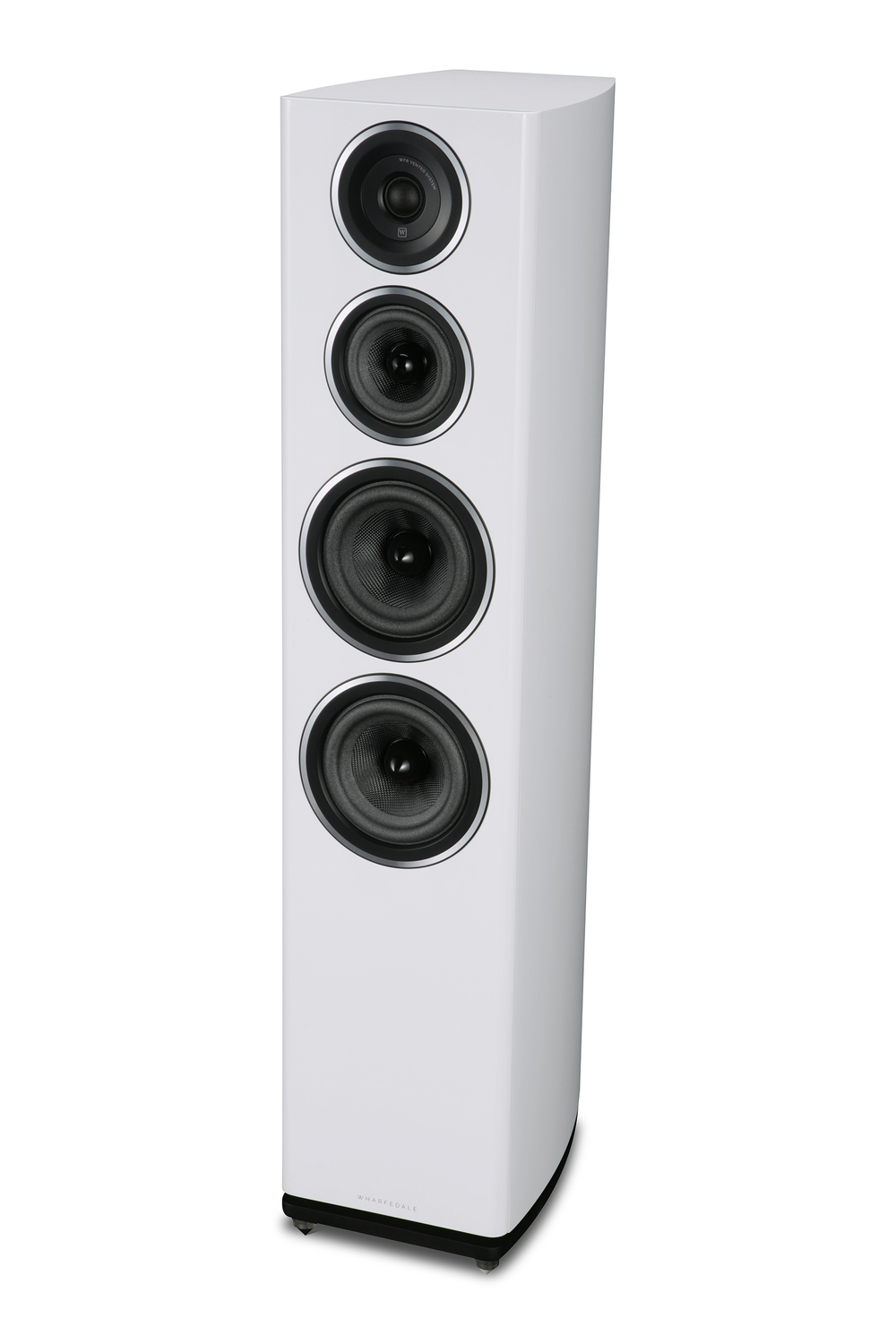

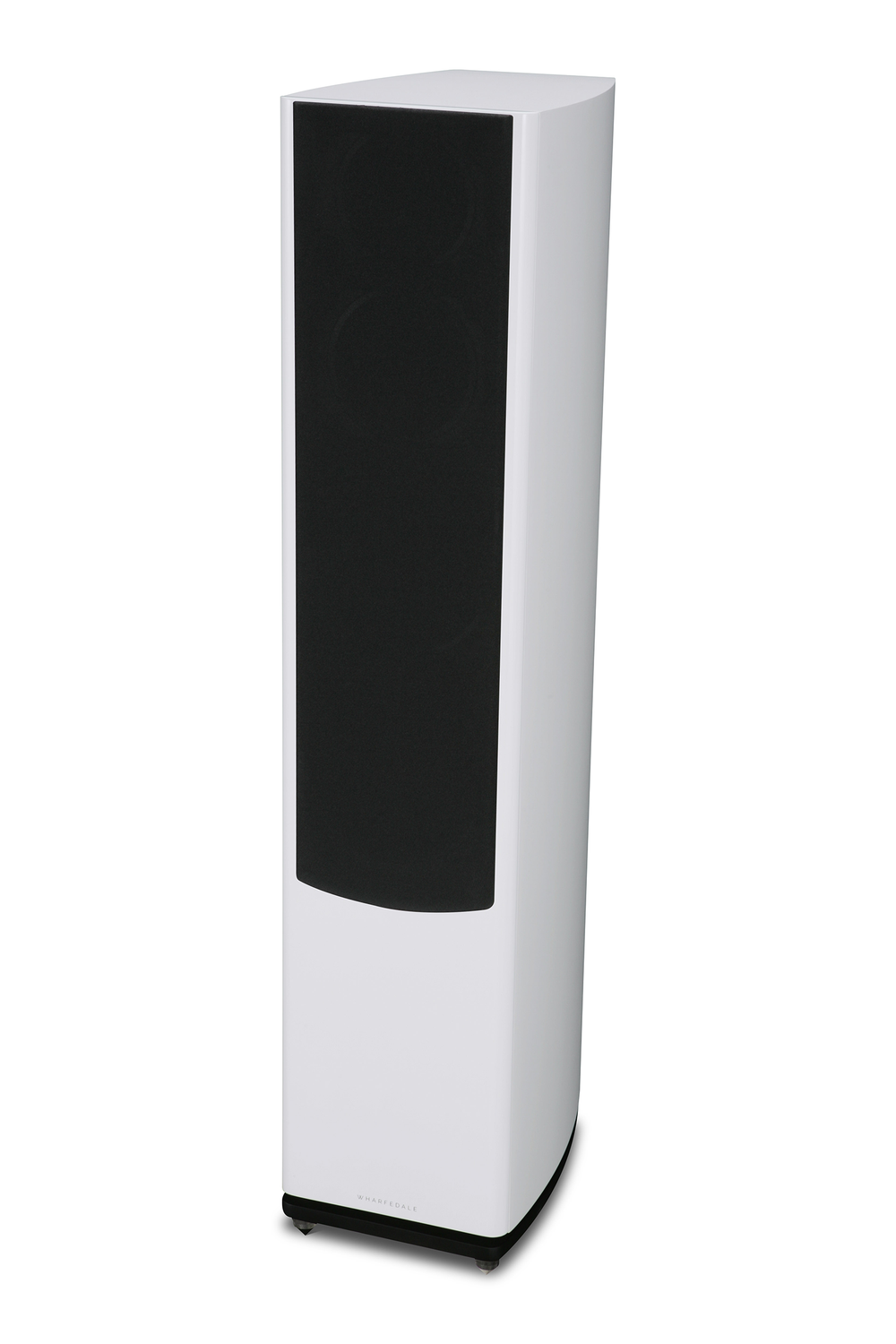

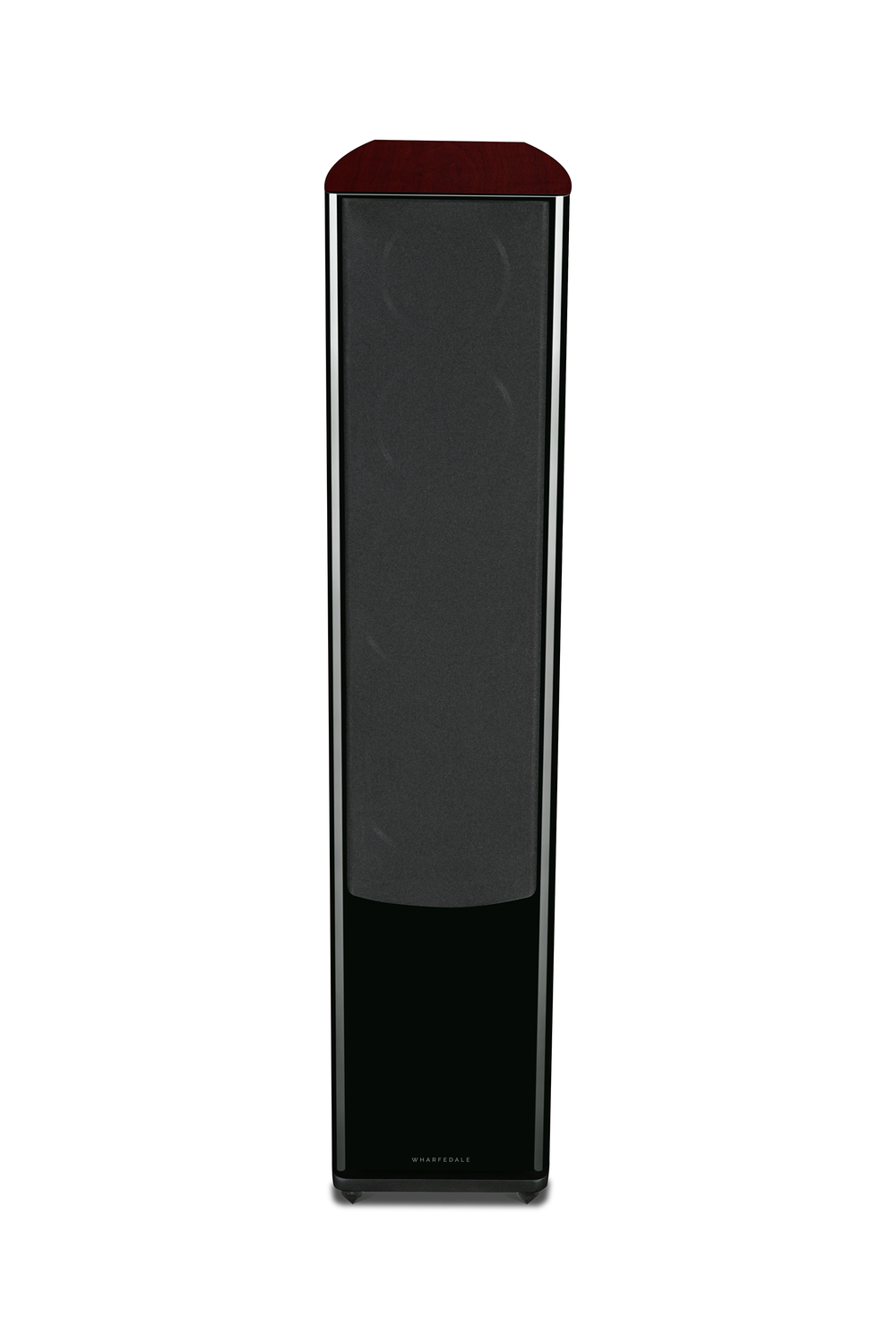

||3-way floorstanding speaker|
|Bass Driver:||6.5" Woven Kevlar Conex2|
|Midrange Driver:||4" Woven Kevlar Cone|
|Treble Driver:||1"Textile Dome|
|Sensitivity (2.83V @ 1m):||91dB|
|Recommended amp power:||25-175W|
|Nominal impedance:||8Ω Compatible|
|Frequency Response (+/-3dB):||42Hz ~ 20kHz|
|Bass Extension (-6dB):||33Hz|
|Crossover Frequency:||750Hz & 3.5kHz|
|Cabinet Volume (in litres):||Mid internal 12.0 / bass internal 30.9|
38.8" x 8.7" x 12.6"
